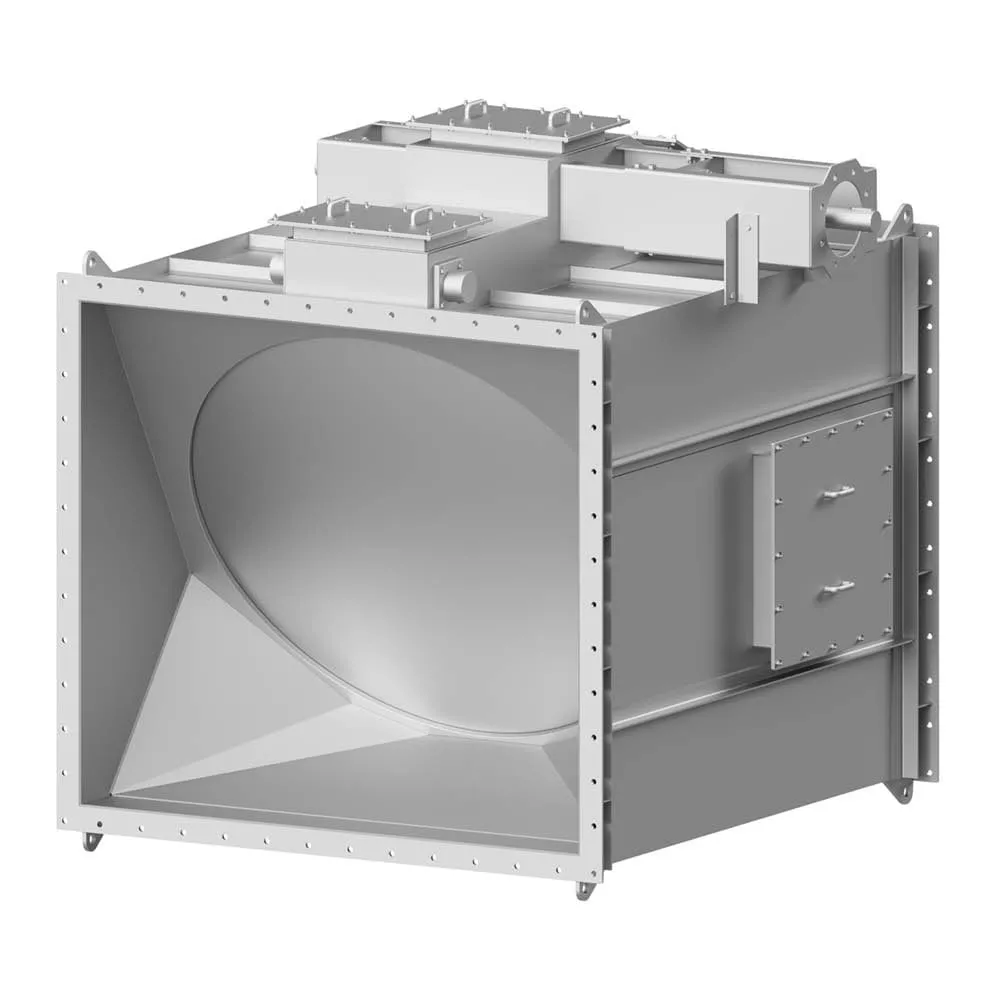

Disc Damper S450

APPLICATIONS

Used in an industrial system to fully open or close the flow in a duct. Especially beneficial where complete shutdown is critical, such as in a bypass to a chimney, filter, or at the intake and outlet of an air handling unit.

Suitable for clean gases as well as gases with some particulate content. For shutdown and emission control. To optimize and ensure tightness. To meet environmental standards.

TECHNICAL DESCRIPTION

Robust and stable construction. A through-shaft where the blade is suspended in a three-point linkage. The damper blade is flat or curved depending on the dimension and function. The three-point linkage, together with the blade shape, ensures 100% geometric sealing.

The advantage of the S450 is that the blade is lifted out of the duct in the open position. This comes at the cost of a larger installation size.

Plate dampers are installed so that the flow presses the blade against the sealing surface, which helps the pressure to keep the damper tight.

    • Stuffing box on both sides in stainless steel with double ball bearings in S235 as standard.
    • The choice of materials for the housing, blades, and flanges depends on several factors, such as temperature, corrosive environments, or wear. Materials can be mixed, for example, different materials for the housing and blades.
    • Blade sealing available in materials like PTFE, Fiberglass, Silicone.
    • Flanges are manufactured according to your specifications or using our or other known standards in the market.
    • We design according to your needs, in almost all alloys.

Certification

APPLICATIONS

Used in an industrial system to fully open or close the flow in a duct. Especially beneficial where complete shutdown is critical, such as in a bypass to a chimney, filter, or at the intake and outlet of an air handling unit.

Suitable for clean gases as well as gases with some particulate content. For shutdown and emission control. To optimize and ensure tightness. To meet environmental standards.

TECHNICAL DESCRIPTION

Robust and stable construction. A through-shaft where the blade is suspended in a three-point linkage. The damper blade is flat or curved depending on the dimension and function. The three-point linkage, together with the blade shape, ensures 100% geometric sealing.

The advantage of the S450 is that the blade is lifted out of the duct in the open position. This comes at the cost of a larger installation size.

Plate dampers are installed so that the flow presses the blade against the sealing surface, which helps the pressure to keep the damper tight.

    • Stuffing box on both sides in stainless steel with double ball bearings in S235 as standard.
    • The choice of materials for the housing, blades, and flanges depends on several factors, such as temperature, corrosive environments, or wear. Materials can be mixed, for example, different materials for the housing and blades.
    • Blade sealing available in materials like PTFE, Fiberglass, Silicone.
    • Flanges are manufactured according to your specifications or using our or other known standards in the market.
    • We design according to your needs, in almost all alloys.

Additional information

Temperature

< 750°C

Size

DN250 – 2000
