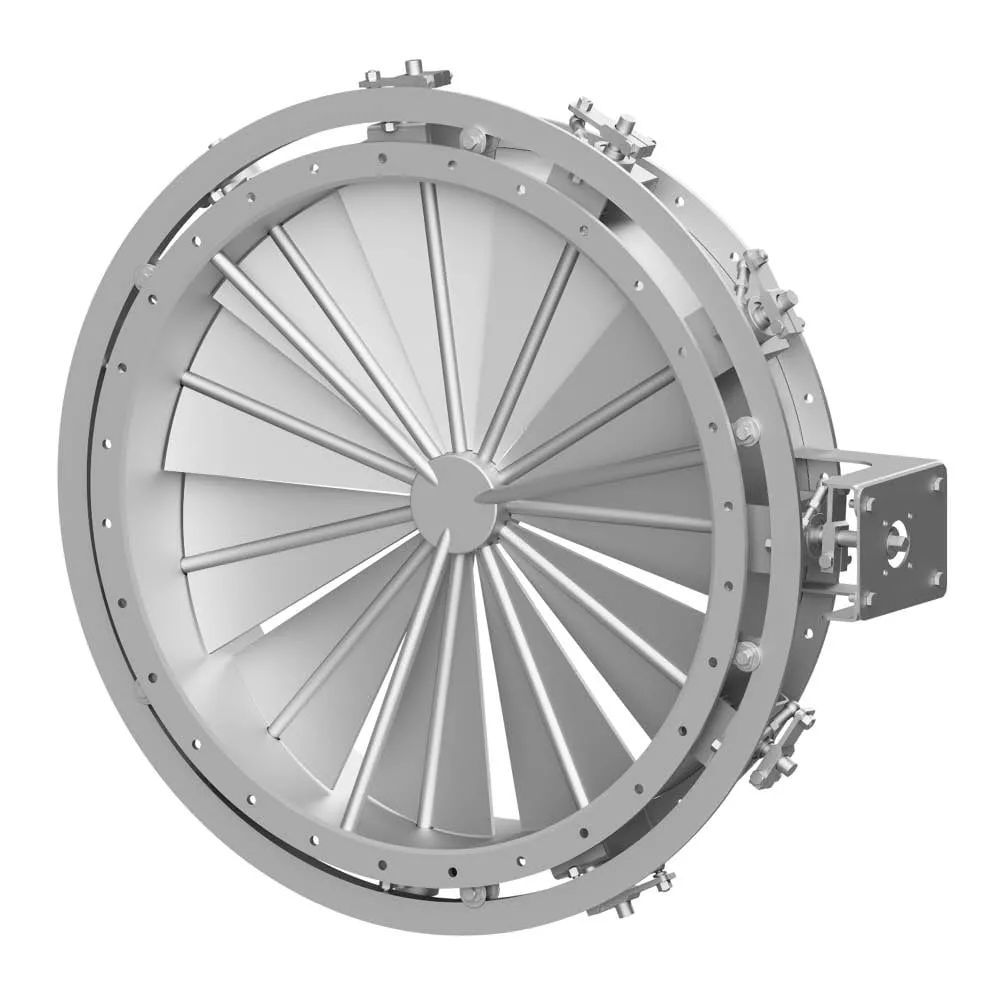

Guide Vane Damper S700

APPLICATIONS

Guide vane dampers are most commonly used at fan intakes but also in flue gas ducts. By having the blades meet at a hub in the center, the air is given a rotation that moves more efficiently through the fan wheel or duct. This reduces the load, and thereby energy consumption, on the fan. The damper can be used for flow control as well as for shutdown.

TECHNICAL DESCRIPTION

Robust and stable construction. A through-shaft where the blade is welded along the entire shaft. No screwed parts in the duct that could cause problems over time.

    • The damper discs are connected to each other through an external linkage system.
    • The linkage arms are equipped with angle links – all to achieve a gap-free linkage system.
    • Ball bearings and linkage arms in S235 as standard.
    • Flanges are manufactured according to your specifications or using our or other known standards in the market.
    • We design according to your needs, in almost all alloys.

Certification

APPLICATIONS

Guide vane dampers are most commonly used at fan intakes but also in flue gas ducts. By having the blades meet at a hub in the center, the air is given a rotation that moves more efficiently through the fan wheel or duct. This reduces the load, and thereby energy consumption, on the fan. The damper can be used for flow control as well as for shutdown.

TECHNICAL DESCRIPTION

Robust and stable construction. A through-shaft where the blade is welded along the entire shaft. No screwed parts in the duct that could cause problems over time.

    • The damper discs are connected to each other through an external linkage system.
    • The linkage arms are equipped with angle links – all to achieve a gap-free linkage system.
    • Ball bearings and linkage arms in S235 as standard.
    • Flanges are manufactured according to your specifications or using our or other known standards in the market.
    • We design according to your needs, in almost all alloys.

Additional information

Temperature

< 500°C

Size

DN0 – 3000

STP-files

Sales

Contact one of our sales representatives for more information about agitators. You can always consult us to get the right product in the right place.
